Dahua · Accessories

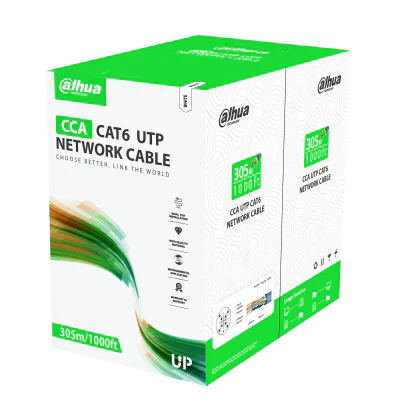

305m U/UTP CAT6 Network Cable (White,CCA,CPR Eca)
MODEL / PFM922I-6UN-C
- · 305 m (1,000.66 ft)/carton, U/UTP CAT6, power over Ethernet, compatible with one cable.
- · Manufacturing excellence.
- · Customized PVC outer sheath, CE CPR Eca flame retardant class certified.
- · 10-year warranty.
Camera TypeAccessories
Technical data
Technical Specifications
【Certifications】
- [Certifications] Certifications
- CPR Eca
【Compliance Standard】
- [Compliance Standard] Compliance Standard
- Q/DXJ 067-2024
【Conductor】
- [Conductor] American Wire Gauge
- 23AWG
- [Conductor] Conductor Structure
- 0.57 mm ± 0.01 mm (0.02" ± 0.0004")
- [Conductor] Material
- CCA (copper content 22%–31%)
【Electrical】
- [Electrical] Dielectric Strength
- No breakdown with 1KV DC for 1 min
- [Electrical] Max. DC Resistance of a Single Conductor
- 11.5 Ω/100 m
- [Electrical] Max. DC Resistance Unbalance
- 2% (pair intra), 4% (pairs inter)
- [Electrical] Min. Insulation Resistance
- 5000 MΩ·km
【Environmental】
- [Environmental] Color Migration Resistance of Insulation
- No migration
- [Environmental] Heat Shock Test
- No cracking after the test
- [Environmental] Installation Temperature
- 0 °C to +50 °C (+32 °F to +122 °F)
- [Environmental] Low Temperature Bending Test
- No cracking after the test
- [Environmental] Operating Temperature
- –20 °C to +60 °C (–4 °F to +140 °F)
- [Environmental] Sheath Tensile Strength and Elongation at Break after Aging
- ≥12.5 MPa, ≥125%
- [Environmental] Shrinkage of Insulation
- ≤5%
- [Environmental] Storage Humidity
- <60% (RH)
- [Environmental] Storage Temperature
- –10 °C to +40 °C (+14 °F to +104 °F)
【Flame-retardant Standard】
- [Flame-retardant Standard] Compliance Standard
- EN 50575 Eca
【Insulation】
- [Insulation] Insulating Material
- HDPE
- [Insulation] Insulation Color
- 8 cores. Blue, white and blue; Orange, white and orange; Green, white and green; Brown, white and brown
- [Insulation] Insulation Diameter
- 1.02 mm ± 0.06 mm (0.04" ± 0.002")
- [Insulation] Min. Average Thickness
- 0.21 mm (0.01")
【Mechanical】
- [Mechanical] Conductor Elongation at Break
- ≥8%
- [Mechanical] Elongation at Break
- Sheath ≥150%, insulation ≥300%
- [Mechanical] Installation Bending Radius
- >8 times of outer cable diameter
- [Mechanical] Tensile Strength
- Sheath ≥13.5 MPa, insulation ≥16 MPa
【Packaging】
- [Packaging] Cable Length
- 305 m ± 2 m (1,000.66 ft ± 6.56 ft)
- [Packaging] Gross Weight
- 10.5 kg ± 0.5 kg (23.15 lb ± 1.10 lb)
- [Packaging] Net Weight
- 9.5 kg ± 0.5 kg (20.94 lb ± 1.10 lb)
- [Packaging] Packaging Dimensions
- 394 mm × 394 mm × 253 mm (15.51" × 15.51" × 9.96") (L × W × H)
- [Packaging] Packaging Method
- 305 m (1,000.66 ft) a carton, one carton with 2 inner cartons
- [Packaging] Transport Package Dimensions
- 527 mm × 415 mm × 424 mm (20.75" × 16.34" × 16.69") (L × W × H)
【Rip Cord】
- [Rip Cord] Material
- Polyester
- [Rip Cord] Specification
- 500D
【Security】
- [Security] Vertical Flame Test
- IEC 60332-2-2
【Separator】
- [Separator] Material
- PE
- [Separator] Specification
- Translucent 4.5 mm × 0.4 mm (0.18" × 0.02")
【Sheath】
- [Sheath] Min. Average Thickness
- 0.5 mm (0.02")
- [Sheath] Sheath Color
- White
- [Sheath] Sheath Diameter
- 6.5 mm ± 0.30 mm (0.26" ± 0.01")
- [Sheath] Sheath Material
- PVC
【Transmission】
- [Transmission] Characteristic Impedance
- 100 Ω ± 15 Ω
- [Transmission] Max. Attenuation
- ≥34.8 dB/100 m@250 MHz
- [Transmission] Near-end Crosstalk
- ≥39.3 dB/100 m@250 MHz
- [Transmission] Return Loss
- ≥17.3 dB/100 m@250 MHz
